PLC Control Grooving Post Press Equipment V Shape Slotting Dust Free

PLC Control Grooving Post Press Equipment V Shape Slotting Dust Free

UV Coating Machine

Post Press Machine

Menşe yeri:

CHINA

Marka adı:

Diamond

Sertifika:

ISO9000

Model numarası:

PM-950

Bize Ulaşın

Bir teklif isteği
Ürün Detayları
Machine structure:
Stainless steel
Greyboard width:
50-950mm
Greyboard Length:
50-750mm
Grooving interval:
50-750mm
Machine size:
2150×1250×1250mm
Ödeme ve Gönderim Koşulları
Min sipariş miktarı
1 set
Fiyat
USD 10800-11800 per set
Ambalaj bilgileri
Wood case of 2150×1250×1250mm, 1080kgs
Teslim süresi
10-15 days
Ödeme koşulları
T/T, L/C, Western Union, MoneyGram
Yetenek temini
20 sets per month
Ürün Açıklaması

PLC Control Grooving Post Press Equipment V Shape Slotting Dust Free



The grooving machine is a glueless grey board grooving equipment, it has vacuum sucking system, which can do cardboard, grey board and MDF grooving.



This machine works stable, higi accuracy, low noise, easy to collecting the grooving waste

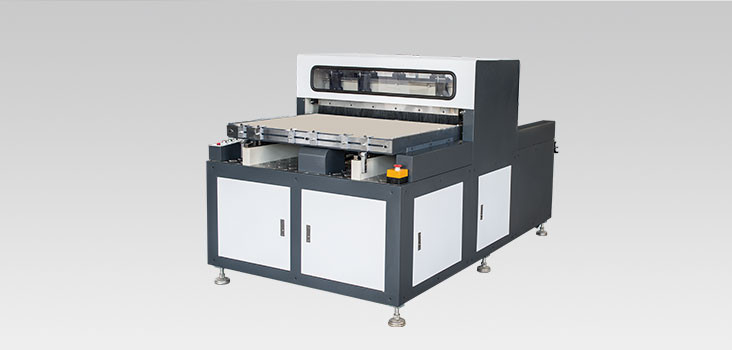

PLC Control Grooving Post Press Equipment  V Shape  Slotting Dust Free 0



Performance and characteristics
1. It adopts PLC control, featuring in simple operation. The errors are displayed directly on the HMI,which helps the operator easily remove them.
2. The cardboard feeder is controlled by linear guide line and servo motor,positioning accurately and swiftly.
3. Equips with a vacuum pump to keep the cardboard grooved accurately without any movement.
4. In the cardboard feeder, the machine can automatically stop when lack of cardboard to reduce the waste rate.
5. Durable knife, equips with grinder which makes operation easier.
6. Wide use: Can be used in grooving the paperboard, corrugated board, cardboard, MDF and other materials etc.



Technical Parameters

Board width 50-950mm
Board length

50-750mm

Grooving interval

0-850mm

Board thickness

1.6-4.5mm

Grooving slots at same time

8 lines

Grooving speed

4-10 seconds/time (forwarder and backward)

Total power

4.3kw / 380V

Packing size

2150×1250×1250mm

Machine weight

1080kg

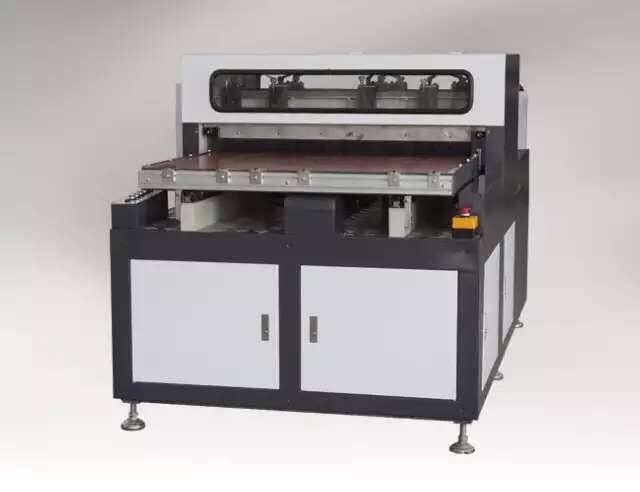

PLC Control Grooving Post Press Equipment  V Shape  Slotting Dust Free 1



Advantage of the Dust free Grooving machine



1. Less deviation -- using a serious of Vacuum System to suck the paper board powerfully. And cardboard is feeding on the Plate-type linear guideway so that it will not go wrong way.

2. No deformation -- vacuum system will suck the paperboard without any deformation.

3. Dust-free -- after grooving, the furface of the cardboard is clean.

4. The most High Accuracy -- 0.1mm, almost no deviation when grooving.

5. High Speed -- 35/min.

6. PLC control -- easy to control, and easy for workers to operate. One operator is enough.

7. Automatic -- have an auto feeder, the machine will feeding the cardboard automatically.

8. Equipped with an automatic waste conveyor belt -- automatically collecting the waste paper, and the waste paper is recyclable. Waste conveyor belt is below the grooving work table.

9. Adopted servo motor -- high accuracy, strong stability. Position control, speed control and torque control. Comprehensive protection and alarm.

10. Durable Knife -- our grooving machine is equipped with a knife grinder, easy to use. Our knife is of high quality durable. Knife angle can be adjusted from 50°-150° .
