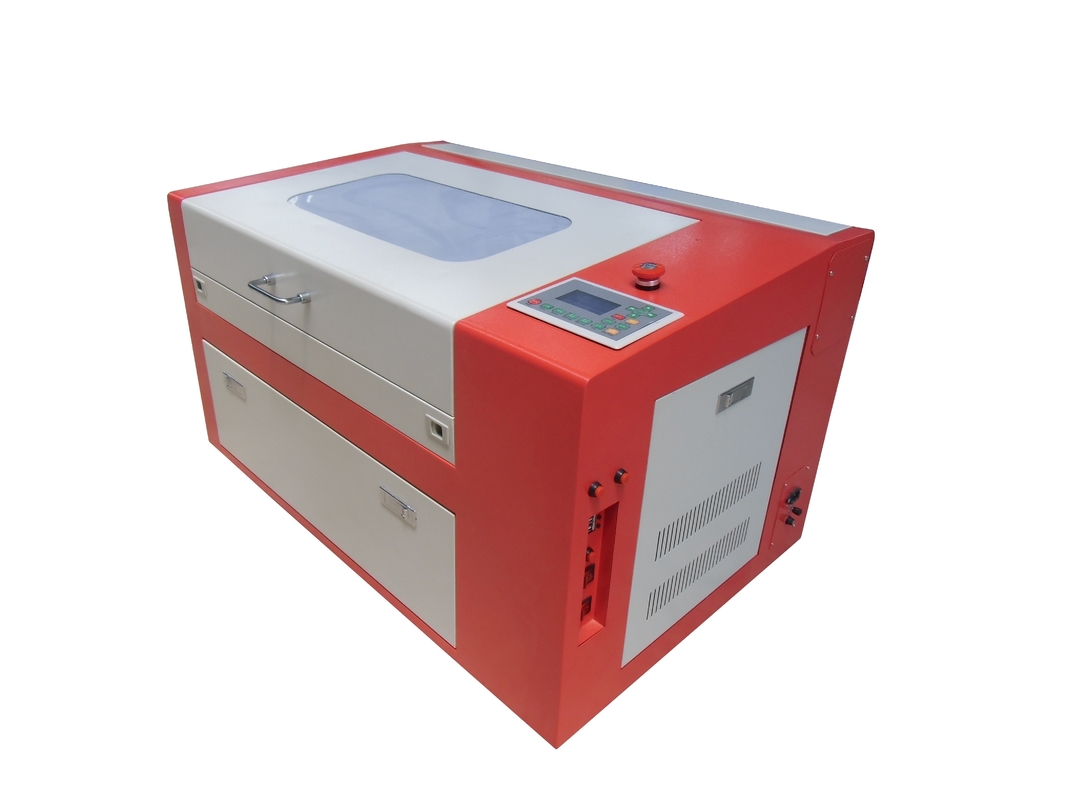

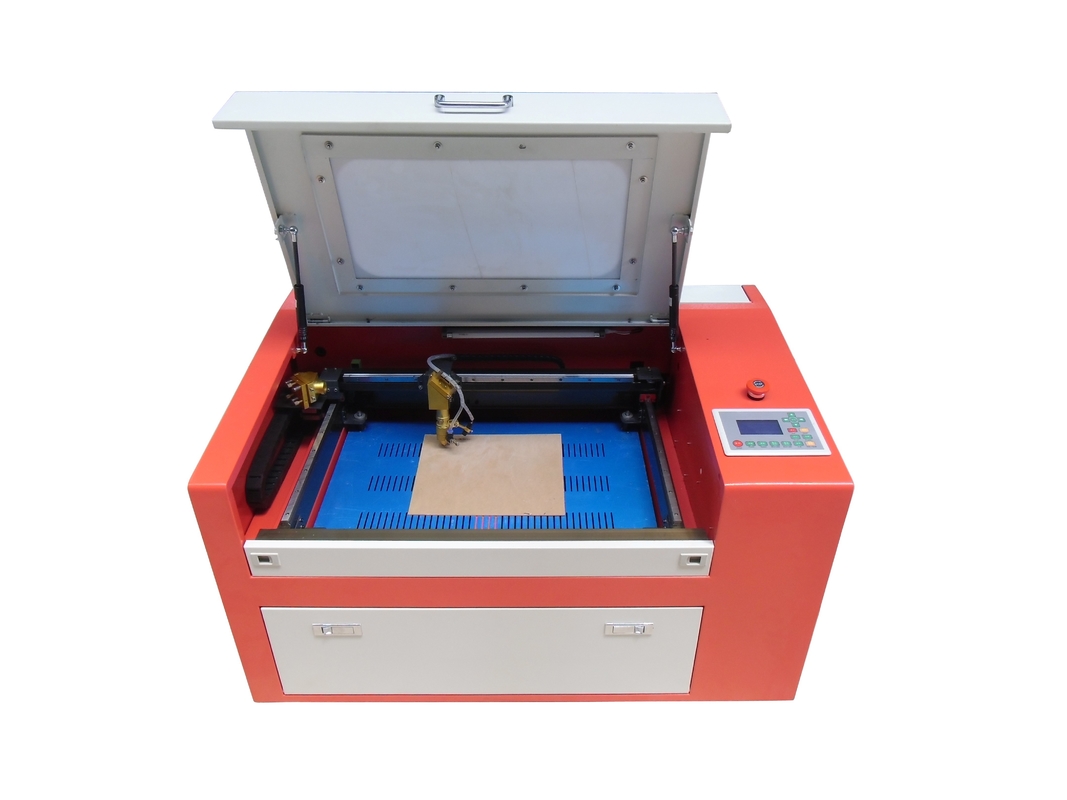

Small Power Cnc Laser Cutter Machine / Laser Etching Machine For Cloth Leather Wool
Lazer Kesim Ekipmanları
,Lazer Kesici Makinesi
,Kumaş İçin Cnc Lazer Dağlama Makinesi
Small Power Cnc Laser Cutting Machine 40w ~ 60w Laser Engravieng Machine
Applicable Industry
Cloth,leather,wool,fur,acrylic,plexiglass,wooden board,plastic,resin,rubber,bamboo product,resin and other non-metal materials.
Adavantage
The machine is suitable for garment,leather,package and printing,advertisement decoration,building upholster,art gift,computer embroidery,paper product,acrylic board of plastic,middle density board etc.non-metal sheet precision cutting and other industries.
Technical Parameters
|
Laser Power |
40-60W(optional) |
|
Laser Type |
hermetic co2 glass tube |
|
Power Supply |
AC220±10% 50HZ/AC 110±10% 60HZ |
|
Working Area |
500mm×300mm |
|
Max Moving Speed |
0---50mm/s |
|
Worktable |
honeycomb worktable/up&down worktable |
|
Locating Precision |
＜0.01mm |
|
Min Shaping Character |
character:3×3mm,letter:2×2mm |
|
Operating Temperature |
5℃---35℃ |
|
Resolution Ratio |
≤4500dpi |
|
Control Configuration |
DSP |
|
DataTransfer Interface |
USB(offline) |
|
Svstem Environment |
WINDOWS 2000/WINDOWS XP/Vista/win7 |
|
Cooling Way |
water cooling and protection system |
|
Graphic Format Supported |
the files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
|
Compatible software |
CorelDraw,AutoCAD |
|
Cutting Thickness |
0---10mm(depends on different materials) |
|
Color Separation |
separation of cutting up to 256 colors |
|
Sloping Engraving |
yes,slope can be designed discretionarily |
|
Cuts off the Water Supply the Protection |
yes |
|
Machine Dimension |
1020×650×540 mm |
|
Package Dimension |
1130×760×670 mm |
|
New Weight |
90kg |
|
Gross Weight |
95kg |
|
Optional Parts |
high-grade cooling system/imported focus lens/dobble-head/cylinder rotary attachment/irregular rotary attachment |
-
