Menşe yeri:
SHANGHAI, CHINA
Marka adı:
Diamond
Sertifika:
ISO9000
Model numarası:
PM-360 PM-487
Bize Ulaşın
1. Accurate diameter
2. whole sheet no joint,
3. density inside
4. good for insert rotary cutting rule

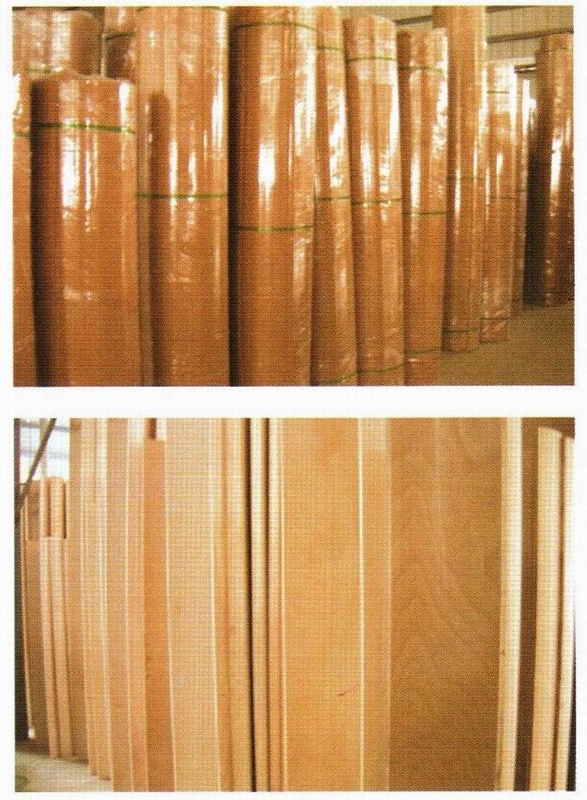

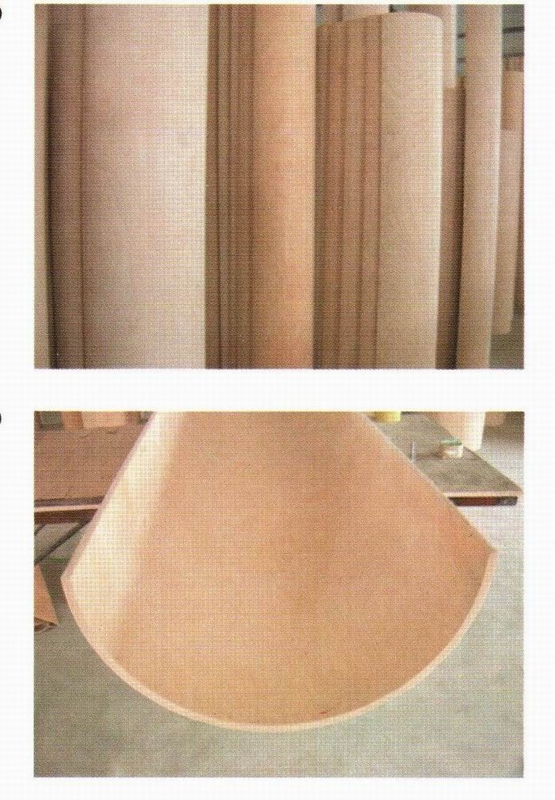

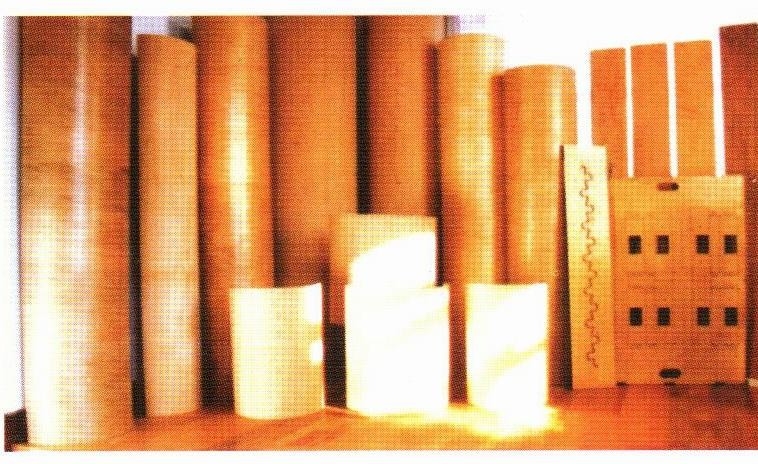

Our dieboard is very accurate in diameter, curved degree, inside is very dense, good for used as dieboard for cutting formes making. Material: BEECH.
Specification as belows:
|
Product |
Material |
Thickness |
Diameter |
Length |
|
Rotary Die Board |
Beech |
13mm |
197mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
270mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
360mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
410mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
440mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
487mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
536mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m |
|
Rotary Die Board |
Beech |
13mm |
676mm |
1.8m, 2.0m,2.2m, 2.4m, 2.6m, 2.8m, 3.0m
|
Other thickness like 15mm can be done as per special requirement.
Packaging & Shipping:
Inside Packing: 5pcs/pallet
Outsite packing: stretch film wrapping+steel PP tape
Sorgunuzu doğrudan bize gönderin
