Fully Automatic Industrial Laminating Machine 1050mm Feeder Thermal Laminator

Fully Automatic Industrial Laminating Machine 1050mm Feeder Thermal Laminator

Ticari Laminasyon Makinesi

Otomatik Laminasyon Makinesi

1050mm Besleyici Termal Laminatör

Menşe yeri:

Zhejiang, China

Marka adı:

Promega

Sertifika:

CE

Model numarası:

PRO-FMA-920A/1050A

Bize Ulaşın

Bir teklif isteği
Ürün Detayları
Minimum kağıt:
340x340mm
Maksimum kağıt:
850x1050mm
Satış Sonrası Hizmet:
Yurtdışı kurulum ve eğitim
Otomatik Sınıf:
Tam otomatik
Garanti süresi:
1 yıl
Ödeme ve Gönderim Koşulları
Min sipariş miktarı
One set
Fiyat
USD 28,000 to 32,000 per set
Ambalaj bilgileri
Wooden case
Teslim süresi
25 days
Ödeme koşulları
L/C, T/T, Western Union, MoneyGram
Yetenek temini
5 sets per month
Ürün Açıklaması

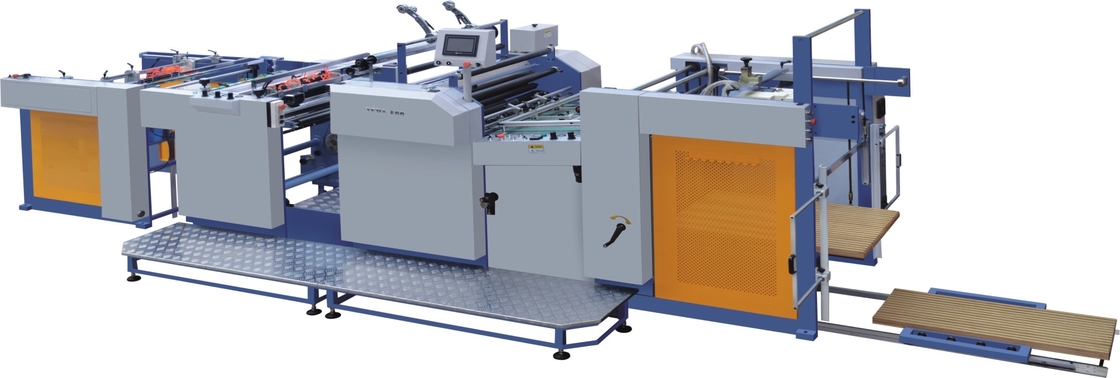

Fully Automatic Industrial Laminating Machine 1050mm Feeder Thermal Laminator



Split Laminating Machine



Applications

·To suit two kinds of film:pre-glued film and glueless film



Configuration

· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.and paper can be added even if the machine is kept running,which improves working efficiency so much.

·Man-machine interface system:color touch screen simplifies the machine operation.on the touch screen,as Iong as the operator inputs paper size, overlap length and working speed etc,.the machine can realize completely automated operation. and on touch screen,working status of the machine can be checked at any time.

· Automatic paper feeding system is equipped with no paper protector,paper break protector and paper superposing protector,which are controlled by photoelectric and mechanical systems.when no paper,paper break or paper superposition occurs,the machine will stop automatically for self-protection.

· Conveying table is furnished with air aspirator and front lay etc.to regulate paper conveying and overlap and improve lamination prevision.

· High precision of big chrome plated heating roller is equipped with built-in oil heating system,which has excellent performance to temperature control.The Iaminating temperature is adjustable upon applications Or electromagnetic heating..

·Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.

· Air expansion shaft releases film,and perfects the precision of film release,and also makes the Ioading and unloading offilm rolI much more convenient.

·The combination of air expansion shaft and braking device can adjust film release tension and release speed.

· Pneumatic cutting system realizes automatic paper cut as Iong as the operator inputs the size of workable paper on the touch screen.

· Collecting unit iS furnished with corrugating paper pressing system,which settles completely the crimping trouble of thin and big size of Iaminated paper.



Fully Automatic Industrial Laminating Machine 1050mm Feeder Thermal Laminator 0

Technical Parameters

Model                        PRO-FMA-920A/1050A

Max paper size          850x1050mm

Min paper size           340x340mm

Laminating speed     0-60m/min

Paper weight            127-400g

Power                       30kw

Total Weight            5000kg

    Overall Dimensions  9000x2260x1900mm
