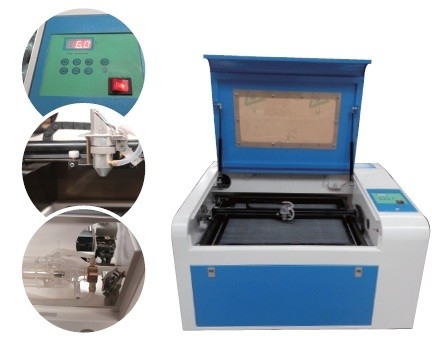

Co2 Laser Engraving Machine 320x200mm For Stamp Making And Timber Engraving
Lazer Oyma Makinesi
,Lazer Kesim Ekipmanları
,Co2 Lazer Kereste Oyma Makinesi
Laser engraving machine for Stamp making and Timber engraving 40/50/60W CO2 laser tube
Applicable Material
Rubber seals/stamp, oxhorn steel, atomic seal, wood seal, plexiglass seals, etc..
Applicable Industris
Seal/Stamp industries, small craft carving industry etc.
Technical Parameters
|
Laser Power |
40W-50W(optional) |
|
Laser Type |
hermetic co2 glass tube |
|
Power Supply |
AC220±10% 50HZ/AC 110±10% 60HZ |
|
Working Area |
320mm×200mm |
|
Max Moving Speed |
0---500mm/s |
|
Worktable |
honeycomb worktable/up&down worktable |
|
Locating Precision |
＜0.01mm |
|
Min Shaping Character |
character:3×3mm,letter:2×2mm |
|
Operating Temperature |
5℃---35℃ |
|
Resolution Ratio |
≤4500dpi |
|
DataTransfer Interface |
USB(offline) |
|
Svstem Environment |
WINDOWS 2000/WINDOWS XP/Vista/win7/win8 |
|
Cooling Way |
water cooling and protection system |
|
Graphic Format Supported |
the files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
|
Compatible software |
CorelDraw,LaserDraw |
|
Cutting Thickness |
0---10mm(depends on different materials) |
|
Cuts off the Water Supply the Protection |
yes |
|
Machine Dimension |
(50w--1050×650×750mm) (60w--1400×650×750mm) |
|
Package Dimension |
(50w--1160×760×900mm) (60w--1660×760×900mm) |
|
New Weight |
50w--90kg 60w—95kg |
|
Gross Weight |
50w--100kg 60w—105kg |
-
